Manufacturing Date: 2022

Includes:

Echo RVL2-k2 Revolve 4 Fluorescence Touchscreen Base
Illumination
Brightfield
Phase Contrast: ELWD 0.3NA LWD Phase Condenser
Fluorescence:
Illumination: Integrated LED
Filters:
DAPI
FITC
6 Position Nosepiece with Objectives (Additional Configurations Available):
4x
10x
40xph
Stage: Manual XYZ
Motorized Components: Filter Turret
Additional Accessories:
12.9” Liquid Retina Touch Display

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.

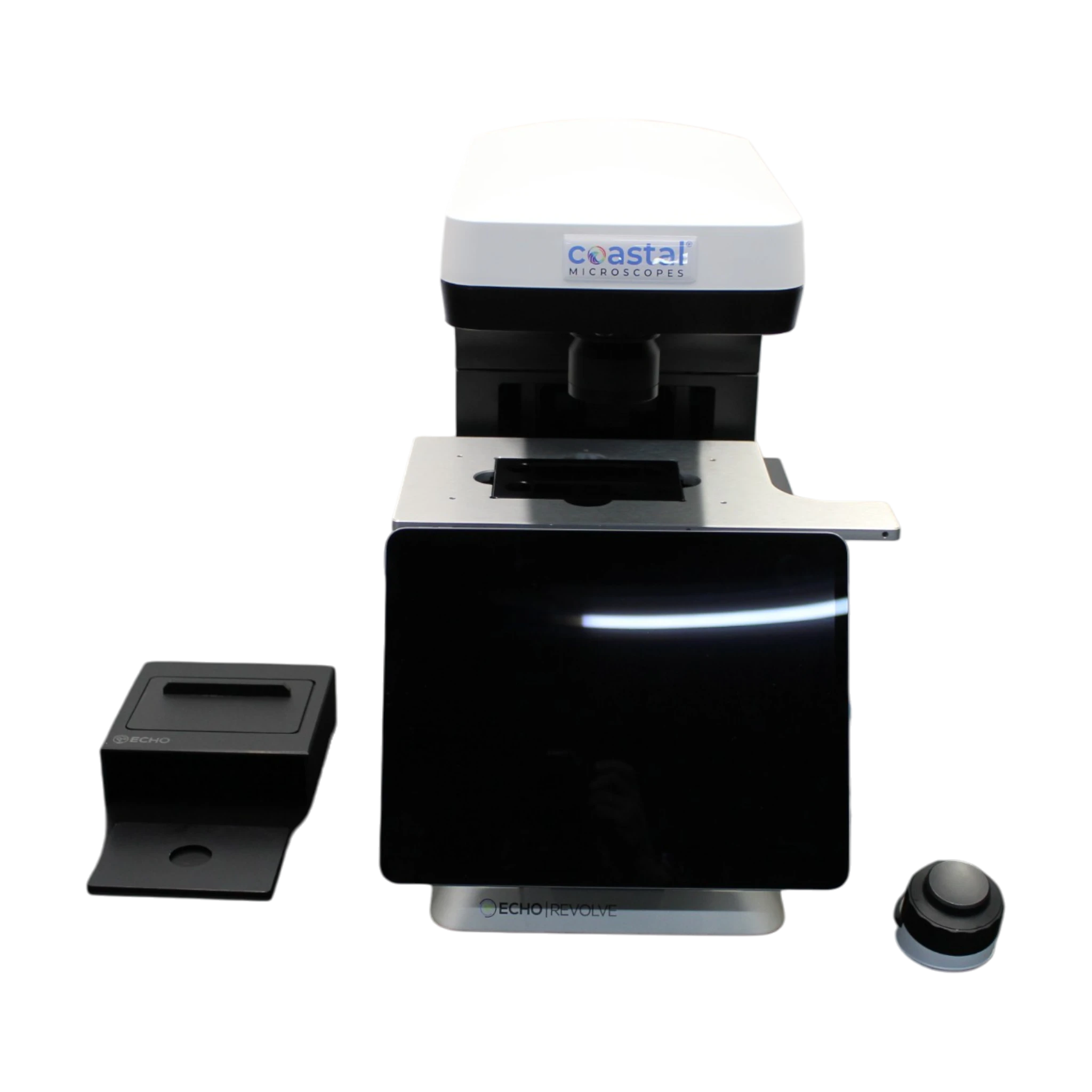

The Echo RVL2-k2 Revolve Fluorescence Touchscreen Microscope is a state-of-the-art, hybrid microscope designed to cater to a wide range of microscopy needs. Here are its key features and capabilities:

Hybrid Design: It combines four microscopes in one, functioning as an upright, inverted, transmitted light, and fluorescence microscope. This design is particularly beneficial as it saves laboratory space and equipment costs, and allows quick configuration changes to suit specific research needs.
Advanced Imaging Capabilities: The microscope features high-performance quality optics for clear, detailed images. It is equipped with a 5MP monochrome camera for fluorescence imaging and a 5MP CMOS color camera for brightfield imaging, ensuring high resolution and an expanded field of view. Its widefield fluorescence images benefit from Echo’s proprietary Digital Haze Reduction (DHR) software, which enhances image clarity by reducing blur and noise.
Touchscreen Interface: The Revolve has a modern, user-friendly touch interface, eliminating the need for extensive training typically associated with advanced microscopes. This touchscreen interface controls both the cameras and the illumination, replacing manual turrets and levers, and allows for quick capturing and visualization of overlays with Motorized LED Fluorescence.
Annotation and Data Sharing Features: The microscope offers intuitive touch gestures for annotations such as cell counting, measuring lengths and areas, and features like pinch-to-zoom. Data can be easily transferred through various file-sharing options like Dropbox, BOX, Airdrop, USB, etc. There is also a function to repeat settings from previously captured images for consistent experiment reproduction.
Compact and Versatile Design: Its compact footprint allows it to fit on standard lab workbenches, and it doesn’t require a darkroom for operation. This portability makes the microscope versatile for use in various settings, including conference rooms and teaching labs.
Technical Specifications: The Revolve microscope features Olympus objectives ranging from 1.25x to 100x, available in Achromat, Fluorite, and Apochromat. It includes ELWD (Extra Long Working Distance) and high-resolution condensers, along with a motorized fluorescence system with mercury-free LED illumination. The dual-camera system includes a 12MP CMOS color camera and a 5MP sCMOS mono camera, complemented by a 12.9" Liquid Retina touch display
