Hermle Z366 – Universal Centrifuge / Z366-K Refrigerated Centrifuge

For applications requiring increased capacity over the Z306 or Z326 series centrifuges, the Z366 series offer a unique “Mid-Range” swing out rotor that accepts a variety of different tubes, including up to 16 x 50ml or 40 x 15ml. Despite this step up in capacity, the Z366 maintains a surprisingly compact design, with the standard air-cooled model featuring a footprint of 17 x 20 inches.

In addition to the popular 4 x 250ml swing out rotor, a variety of additional rotors are also available. Angled rotors range from a 24 x 1.5ml micro rotor to a high capacity 6 x 250ml rotor. A 2 x 3 microplate rotor is also available, as well as a 4 x PCR strips (8-strips) rotor.

Advanced microprocessor controls allow for instant rotor identification, which automatically converts the rotational speed to the relevant g-force (rcf), preventing the user from setting a speed above the capabilities of the installed rotor. In addition to retrieving saved programs, the easy to use front panel can adjust accel/decel rates, and change the end of run alarm tone.

Specifications

Speed	:	200 to 16,000 rpm
Max RCF	:	24,325 xg
Max Capacity	:	4 x 250ml
Temp. Range	:	-20°C to 40°C (-K only)
Dimensions	:	17 x 20 x 14.2 in. (43 x 51 x 36 cm.) 28.3 x 20 x 14.2 in. (-K) (71.9 x 51 x 36 cm.)
Timer	:	up to 99 hr, 59min and continuous
Weight	:	114 lbs/169 lbs (-K)
Electrical	:	120V, 60Hz
Wattage	:	520W/ 785W (-K)

Rotor Options

Z366	Z366 Universal Centrifuge, without rotor
Z366-K	Z366-K Refrigerated Universal Centrifuge, without rotor

Z366-250	4 x 250ml Swing-out Rotor, (4,500rpm/3,780xg) accepts 5/7ml to 250ml tubes, requires inserts (see pdf literature for a full listing)
Z366-250-HC	4 x 250ml High-Capacity Swing-out Rotor, (4,500rpm/3,735xg) accepts 5/7ml to 50ml tubes, requires inserts (see pdf literature for a full listing)
Z366-06250	Rotor, 6 x 250ml bottle (8,000rpm/10,016xg)
Z326-0685	Rotor, 6 x 85ml (Z366: 11,000rpm/15,555xg) (-K: 13,000rpm/21,726xg)
Z326-0650-HS	Rotor, 6 x 50ml round tube (13,00rpm/15,869xg)
Z326-1050	Rotor, 10 x 50ml conical (Z366: 10,000rpm/14,532xg) (-K: 10,500/16,022xg)
Z326-1020	Rotor, 20 x 10ml (12,000rpm/15,775xg)

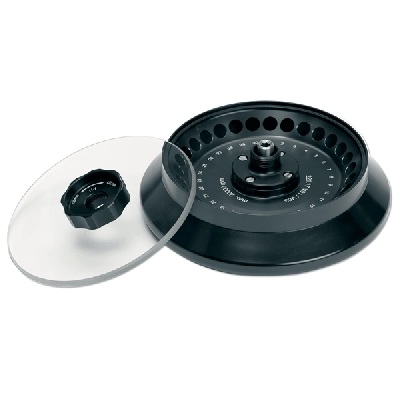

Z326-2420	Rotor, 24 x 1.5/2.0ml with Quick-Seal lid (Z366: 15,000rpm/21,379xg) (-K: 16,000rpm/24,325xg)
Z326-2420H	Rotor, 24 x 1.5/2.0ml Hermetically Sealed (Z366: 15,000rpm/21,379xg) (-K: 16,000rpm/24,325xg)
Z326-4420	Rotor, 44 x 1.5/2.0ml with Quick-Seal lid (Z366: 15,000rpm/21,379xg) (-K: 16,000rpm/24,325xg)
Z326-3015	Rotor, 30 x 15ml (4,500rpm/2,830xg)
Z326-02MP	Rotor, 2 x 3 Microplates (4,500rpm/2,716xg)
Z326-MPCA	NEW! Universal, 3 place chamber slide and 35/60mm dish adapter for microplate carriers 2/pk
