Carver 4120 12-10H Manual Heated Press (12 Ton)

(Model 12-10H) Twelve ton, manual, two-column hydraulic lab press with digital heated platens. Similar to No. 4386 press, but heavier construction and guided moving platen. Electrically heated 10" x 7" platens for temperatures up to 650 deg F (800 F upon request) with one digital controller per platen. Easy-to-read dual scale analog gauge, reading in pounds force and metric tons. (picture shown with analog gauge)

Specifications of the Bench Top Manually Heated Model 12-10H (4120) Press:

Manually operated
Clamping force 12 tons
Daylight opening 0" – 11" (Factory set at 4-1/2”)
Stroke 5-1/8”
Two (2) fully threaded columns
Heated platen package, including:
- Two (2) 10” x 7” electrically heated steel platens
- 1,000 watts per platen
- Temperature range up to 650 deg F
- One (1) digital temperature controller per platen
- Two (2) Strip (flat) heaters per platen

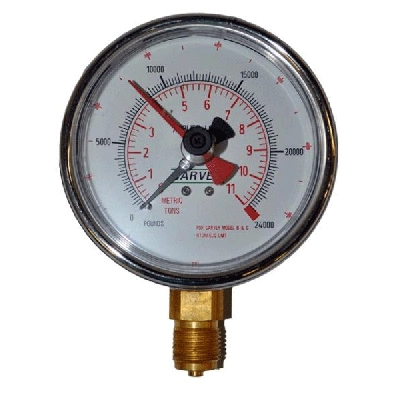

0-24,000 lb Analog pressure gauge, reading in 200 lb increments (digital gauge also available)
115/1 supply voltage
Light gray safety shield
Dark gray frame
Electrical disconnect (non-fused)
Dimensions: 26”L-R x 18”F-B x 39”H (uncrated)
Weight: 420 pounds (uncrated)

Available Options:

Manual cooling including hoses (catalog# 4120.1011)
Force Calibration Certificate using equipment traceable to NIST (part# 1525.00001) [each]
Temperature Calibration by instruments traceable to NIST (part# 1525.00003) [per digital controller]
Floor stand 19"L-R x 19"F-B x 30"H Wt 125# (catalog #223171D)
Floor stand 36"L-R x 26"F-B x 30"H W/6" Casters Wt 260# (catalog #223215C)
Manifold kit for cooling hoses (part #5603)
12 ton hydraulic unit repair kit (catalog #3729)
Two gauge manifold (catalog #2096CE)
Carver Special Hydraulic Fluid (Oil) (part #2170)
Additional gauge choice for two gauge manifold (each)
- 0 - 500 Lb. gauge, 250 Kg, 5 lb increments (catalog #381042)
- 0 - 1,000 Lb. gauge, 450 Kg, 10 lb increments (catalog #381001)
- 0 - 2,000 Lb. gauge, 900 Kg, 20 lb increments (catalog #381002)
- 0 - 5,000 Lb. gauge, 2250 Kg, 50 lb increments (catalog #381003)

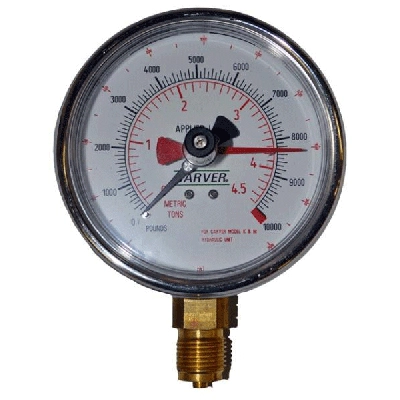

- 0 - 10,000 Lb. gauge, 4500 Kg, 100 lb increments (catalog #381004)
Digital Gauge (catalog# 6306.BN23 100 lb or 6306.BN22 10 lb)
- Easy read LCD Round Gauge Face
- Stem Mounted for Manual Presses only
- Battery powered
- Peak-hold capability
- Readings generate in 100 or 10 pound increments on 24,000 pound gauge
- Approx. accuracy: +/- 1% of reading between 1,000 lbs. & 24,000 lbs. force
