Stock#52775

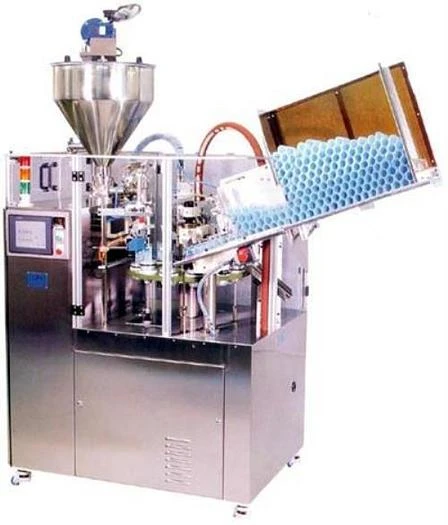

New Kentex model TK850-HA automatic tube filler and sealer with hot air sealing system and trimmer for plastic and laminated tubes. Machine will be set up for any one size tube of your choice, within the machine's size range.

Standard features included:
- inclined chute feed (automatic cassette feeder is optional)
- electric eye for advanced tube centering
- no tube - no fill feature
- progressive bottom up fill
- tube counter and ejection mechanism
- 50 liter stainless steel hopper
- 316 stainless steel filling contact parts
- portable remote control
- 3 trimming patterns - plain, slanted lines or diamond pattern
- coding on either or both sides
- plc with emergency stop button and automatic stoppage for abnormalities
- tool box with emergency spare parts
- (1) set of tube holders
- complies with CGMP

Standard features included
- 1 set of size change parts
- Inclined chute feed (automatic cassette feeder is optional)
- Electric eye for tube centering
- No tube - no fill feature
- Progressive bottom up fill
- Tube counter and ejection mechanism
- 50 liter stainless steel hopper
- 316 stainless steel contact parts
- Portable remote control
- 5 trimming patterns (straight, oval, R, hang hole and wave)
- Coding on either or both sides
- PLC with emergency stop button and automatic stoppage for abnormal tubes
- Tool box with emergency spare parts
- GMC compliant

Optional features available
- Automatic Fill Level Control - $1875.00
- Automatic Cassette Infeed and Discharge System - $3,450.00
- Tube Cleaner - $1,780.00
- 50 Liter Jacketed Hopper with Heater and Thermos Controller - $3,150.00
- Variable Speed Agitator - $2,150.00
- Chiller - $2,300.00

Specifications
- Speed: up to 60 tubes/minute
- Tube diameter : 10 - 52 mm
- Maximum tube length: 280 mm
- Fill volume range: 2 - 320 ml
- Electrical: 3 phase, 60 cycles, 220 volts or 3 phase, 50 cycles, 380 volts
