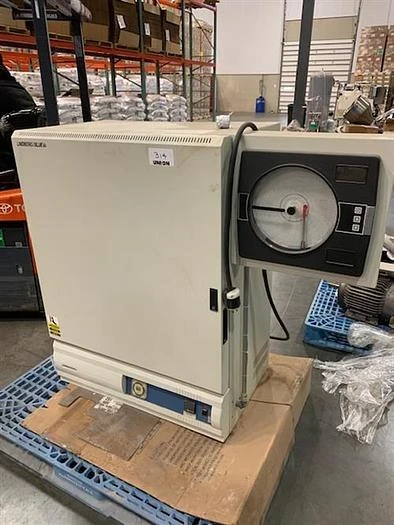

Lindberg/Blue M Box Furnace 17L (0.6 cu. ft.) 1700C 240V BF51634PCOMC-1

Designed for efficient high-temperature use with minimal maintenance.

Choice of single setpoint or programmable control.

Side swing door provides full and easy access to chamber, protects user from heat surge.

Atmosphere port, 0.375in. diameter, for fresh air or inert gas inlet (located at back wall, bottom).

Solid-state power module with ammeter, circuit breaker, transformer and front panel indicator lights for “Ready Element” and “Main Power Applied”.

Safety power disconnect switch cuts power to heating elements when door is opened.

Moldatherm high-temperature ceramic fiber insulation with advanced graded design for fast heat-up and resistance to thermal shock.

Moldatherm hearth plate supports load and protects chamber from spills or mishandling.

High-volume cooling fans move air between inner and outer chamber to reduce exterior shell temperatures and improve energy efficiency and operator safety.

Long-life type “B” thermocouples with 10ft. compensated lead wire and polarized plug for accurate high-temperature measurement.

Removable panels for easy access to replaceable heating elements and thermocouples.

**Heating elements are broken and do not heat up. See attached pictures for more details. SOLD AS/IS

Manufacture Specification

Specifications
Max. Temperature 1700°C

Capacity
(cu. ft.) Interior Dimensions
(D x W x H) Controller Power Consumption
17L
(0.6) 26.7 x 27.9 x 22.9cm
(10.5 x11 x 9 in.) Multisegment/multiprogram/communications 5900w

Lindberg
