Lumen Dynamics X-Cite XLED1 Multi-Triggering LED Illumination System

Internal part number 43065

For Sale Lumen Dynamics X-Cite XLED1 Multi-Triggering LED Illumination System

Fully Functional
Serviced & in Stock
Good cosmetic condition
Technical sales consultation available
CONTINENTAL US 120 DAYS WARRANTY & 60 DAYS INTERNATIONAL
Includes remote instrument setup and training session
More info about our Microscopy Capabilities or view the Microscope Buying Guide

Here is what you will receive:

Lumen Dynamics X-Cite XLED1 Multi-Triggering LED Illumination System:
- X-Cite XLED1 illumination system module: XLED40
- XLED1 touch screen controller module: XLEDCP
Light Guide (not pictured)

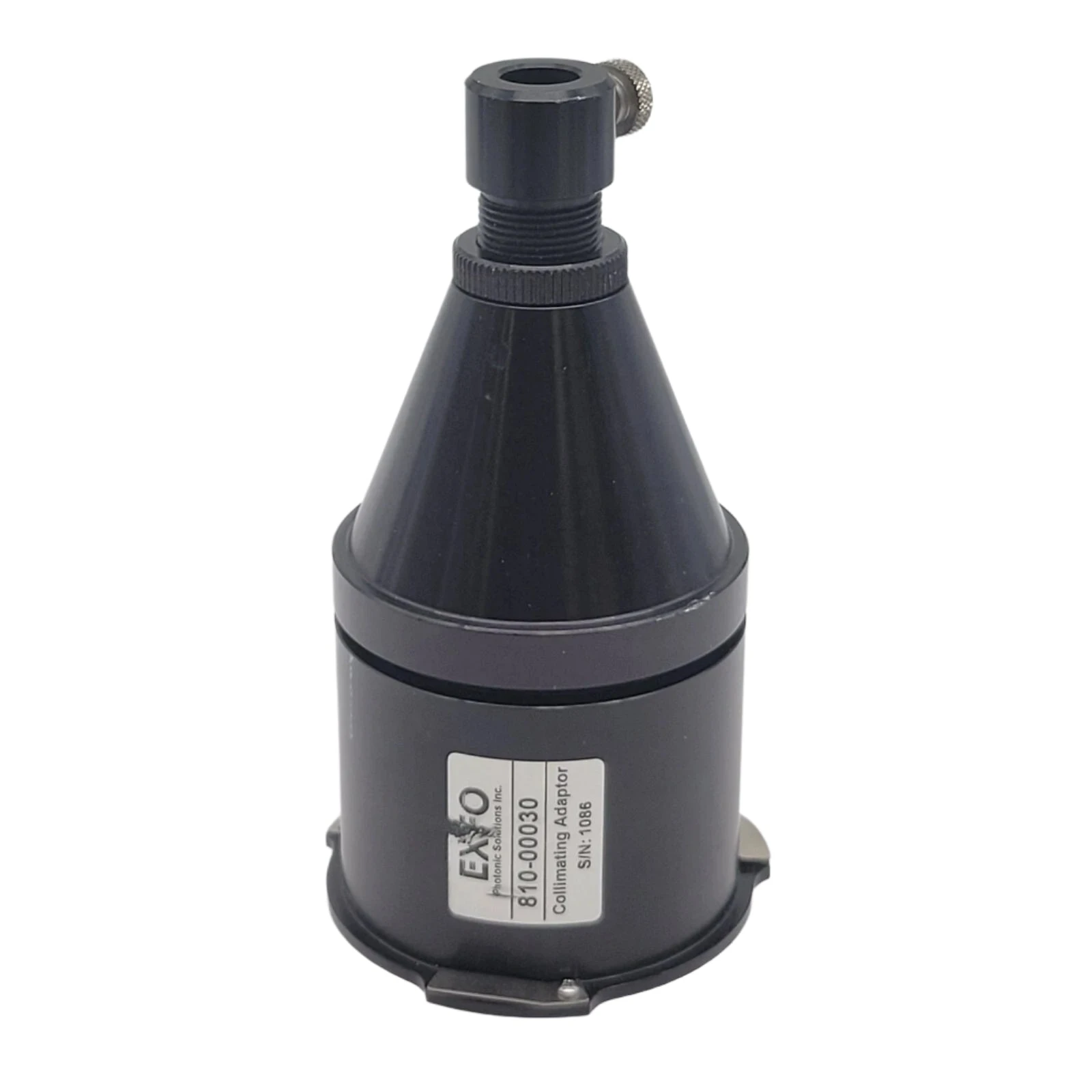

Colminating Adapter (not pictured)
Power cable.

X-Cite XLED1 LED Illumination System Configuration:

LED Type: 4 switchable wavelengths
Wavelength Range: 4 LEDs (375-655 nm)
Individual Colors/White Light - UV BL GR RD
Fixed Cell 2 configuration:
- LED2/UVX: 375-400 nm
- LED1/BDX: 450-495 nm
- LED3/GYX: 540-600 nm
- LED4/RLX: 615-655 nm
Dichroic Mirrors: 3
- DC 1,2: 409 nm
- DC 3,4: 605 nm
- DC 1,2,3,4: 495 nm
Drivers: 4
- Drivers 1: HP Driver
- Drivers 2: SP Driver
- Drivers 3: HP Driver
- Drivers 4: HP Driver
Coupling: Light guide
LED on/off Response Times: 10 μs TTL; 500 μs USB
Intensity Control:0.1% increments
Control Option: XLED1 touchscreen controller module
Connectivity: USB type-B female; Trigger Input BNC/Sync Output BNC (TTL-compatible) (optional cables required)

Testing performed by our in-house service team:

The X-Cite XLED1 LED Illumination System passed all tests and was found to be fully functional:

We verified the functionality of the X-Cite XLED1 LED Illumination System.
We checked all LED modules for proper operation and intensity output.
We inspected the connections to ensure they were secure and undamaged.
We calibrated the system to confirm accurate wavelength delivery.
We tested the integration of the system with compatible microscope.
We evaluated the uniformity of the light output across the field of view.
We validated the system’s ability to switch between LED channels seamlessly.
We ensured the fan and cooling system functioned correctly to prevent overheating.

Instrument Overview:

Compact and versatile LED illumination system designed for fluorescence microscopy applications.
Offers precise wavelength control with multiple independently triggered LED modules.
High-intensity LEDs provide uniform illumination for improved imaging clarity and consistency.
Features a multi-triggering mechanism for seamless synchronization with other lab equipment.
Efficient cooling system ensures stable performance and prolonged LED lifespan.
Compatible with a wide range of microscope configurations and optical components.

Instrument Application:

Live-cell imaging
Time-lapse fluorescence microscopy
Multi-wavelength excitation studies
High-speed imaging applications

Additional technical info:

Datasheet: X-Cite XLED1 LED Illumination System Datasheet
Brochure: X-Cite XLED1 LED Illumination System Brochure
Quick Start Guide: X-Cite XLED1 LED Illumination System QSG
Manual: X-Cite XLED1 LED Illumination System Manual

We can add other microscopes components to fit your requirements:

Check out our microscopy capabilities:

https://www.bostonind.com/our-microscopy-capabilities

ABOUT US...

HOW WE PACK

Why do so many customers choose to order from us?

Our Advantage

We make sure to match the instrument capabilities to your requirements.
We have experience servicing and repairing these instruments.
We offer detailed photos of the instruments you buy.
We are an approved pre-owned equipment vendor to many large US, Canadian, and EU Universities.
We are an approved pre-owned equipment vendor to many Fortune 500 US and International Biopharma companies.
Many upgrade and repair parts are in stock.
Technical sales consultation available
Remote installation and instrument operation training may be available.
On-site installation may be available in the Boston Area (New England area)
US or International shipping is no problem (see the shipping tab on how we pack and feel at ease)

Our Guarantee

Warranty
You get after-sales technical support
Customer references are available
The instrument will be fully functional!
Smooth process from the initial quote to order fulfillment

PLEASE NOTE THAT THE QUESTIONS BELOW ARE ANSWERED IN MORE THOROUGH DETAIL ON OUR WEBSITE

Q: Can I view this instrument in person at your facility or do a live Zoom demo before it is shipped to me?
A: We can accommodate both in-person or Zoom demos.

Q: What about the warranty?
A: The instrument comes fully warranted for both parts and labor.

Q: Do you offer installation, service, etc?
A: We offer remote installation and training packages to familiarize you with this instrument.

Q: What should I watch out for when buying a used/pre-owned instrument from another lab?
A: Ensure that the instrument is in good working condition with no damage or wear that could affect its performance. Ask for details about testing steps performed, video demo, and test screenshots.

Q: Do you have more than one of these instruments on hand?
A: We generally carry multiple instruments on hand, along with a variety of spare parts.

Q: This procurement is for a University or College. Are purchase orders with NET terms accepted?
A: We accept purchase orders from all major US and Canadian universities.

Q: How fast will you ship?
A: We can ship within a few days to two weeks. Shipping time depends on the current demand for our instruments. Members of our sales team will be able to offer current delivery estimates.

Q: Will my instrument be insured during shipping?
A: Absolutely! We insure all our shipments as long as we are the shipper. If a customer ships on their account, they handle insurance.

Q: How do you pack? Have you previously packed and shipped the fragile laboratory instruments?
A: We have extensive experience shipping high-end and complex laboratory instruments in the US and Internationally.

Q: Do you ship Internationally?
A: Yes! We have shipped to multiple continents and over 30 countries.

Q: How much will I save buying it pre-owned, and is it worth it?
A: When compared to buying a new instrument, you will save 60% or more and have plenty of funds left over for an additional instrument or two.
