Tested Nexcelom Celigo S Image Cytometer BFFL 5C - AV

Internal part number 50637

Here is a Nexcelom Cyntellect Celigo S Image Cytometer

P/N: 200-BFFL-5C (1 Bright Field and 4 Fluorescence Channels)

New system is around $120,000-130,000 new.

Predecessor to:
Current model

Condition:
This Nexcelom Celigo S Image Cytometer is in good working condition.

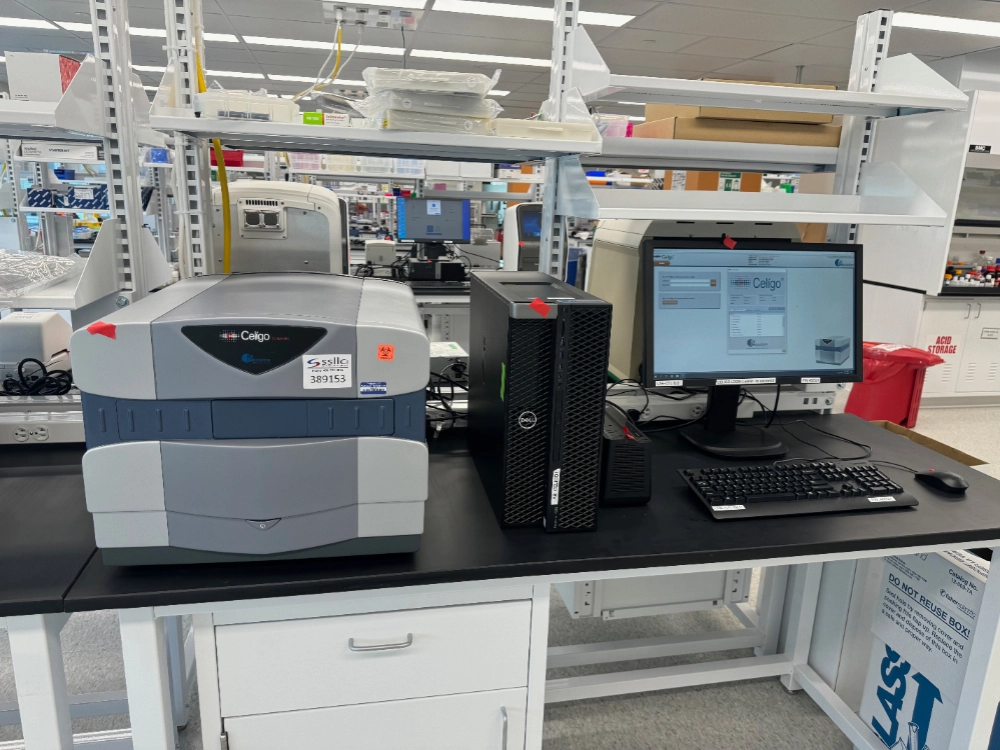

Please see exact video and photos below.

Testing we performed:
The Nexcelom Celigo S Image Cytometer passed all test and was found to be fully functional.
Tested Power On and Initialization: PASSED
Tested Plate Loader Functionality: PASSED
Tested Filter Wheel Functionality: PASS
Tested All Illumination Options: PASSED
Tested Manual Focus: PASSED
Tested Hardware Autofocus: PASSED
System Self Test: PASSED
Tested Image Capture: PASSED

System consists of:
Nexcelom Celigo S Image Cytometer
Standard power cord.

We also have a complete system with software if you are interested.
Please note this system does not come with the computer, but was fully tested. See steps above and images below.
Customer will need to purchase license directly from the manufacturer.

Configuration and Setup:
Multi-channel brightfield and fluorescence imaging cytometer
(4) fluorescent channels (Blue, Green, Red and Far-Red) allow multiplexed assays
Label-free live cell assays
Compatible with 96-, 384- and 1536- well plates.
High-Speed Imaging: less than 2 min for 384-well plate

Optics: (BFFL model: Bright Field and Fluorescence)
-1 LED-based enhanced brightfield imaging channel with uniform well illumination
-4 LED-based fluorescent channels
-Proprietary F-theta lens with superior well edge-to-edge contrast
-Galvanometric mirrors for fast imaging of large areas
-Large chip CCD camera (2024 x 2024 pixels)
-1, 2, 4 or 8 um/pixel resolution

Fluorescent Channels:
-Blue Ex(377/50) DM(409) Em(470/22) Typical Dyes(Hoechst, DAPI)
-Green Ex(483/32) DM(506) Em(536/40) Typical Dyes(FITC, Calcein, GFP, AlexaFluor 488)
-Red Ex(531/40) DM(593) Em(629/53) Typical Dyes(R-PE, PI, Texas Red, AlexaFluor 568)
-Far-Red Ex(628/40) DM(660) Em(688/31) Typical Dyes (DRAQ5, AlexaFluor 647)

Plate Compatibility:
-6, 12, 24, 48, 96, 384, 1536 well plates (black, white and clear wall plates)
-T-25 and T-75 flasks Slides and cell array plate profiles available from the manufacture

High-Speed Imaging: (S model is the high speed model)
-Less than 2 min for 384-well plate

Weight and Dimensions:
-Dimensions: 19” x 24” x 20” (48 cm x 62 cm x 41 cm)
-Weight: 117 lb. (53 kg)

Video Description:
The video below gives an overview of the Nexcelom Celigo S Image Cytometer powered on.

Documentation:

Test Results: Nexcelom Celigo S Image Cytometer

Datasheet: Nexcelom Celigo S Image Cytometer

Brochure: Nexcelom Celigo S Image Cytometer

Quick Start Manual: Nexcelom Celigo S Image Cytometer

Manual: Nexcelom Celigo S Image Cytometer

This will ship via freight. Please contact us with your zip code to obtain shipping quote. ESQ

Please do not hesitate to contact us if you have any questions.
