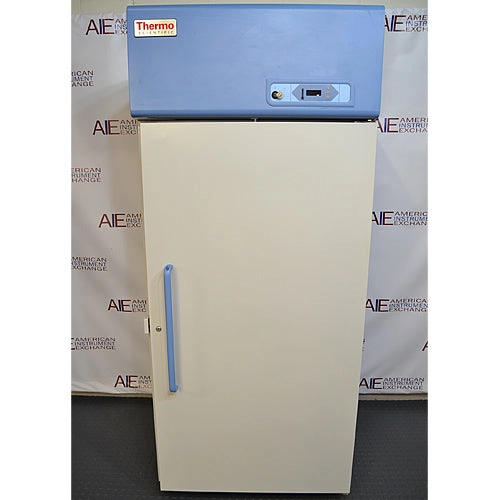

Thermo Revco ULT1786-5-D 17 cubic foot, -80C ultra low freezer

Condition: Excellent

JP Services Standard Warranty: 120 Days

Price: $3,999

Designed for long-term storage of biologicals, blood components and pharmaceuticals, our freezers incorporate the latest refrigeration and microprocessor-based control technology developed to increase reliability, stability and dependability

Freezer feature the Legaci® refrigeration system with fully integrated cooling technology for ultra-low temperature use. The Legaci system is more dependable, specifically designed and tested to operate at temperatures from -40°C to -86°C in a rugged laboratory environment without exceeding parameters of any sub-component within the system.

Specifications

Storage Volume	17.2 Cubic Feet / 487 Liters
Temperature Rating	-40°C to -86°C at 90°F(32°C) Ambient
Electrical Power	208/230V, 60Hz, 1Phase, 10A
Sound Pressure Level (dBA)	61.2 at 5ft in front, 5ft high
Agency Listings	UL, CUL
Application Environment	Indoor Use Only, Non-Corrosive Non-Flammable, Non-Explosive Good Air Ventilation 59°F - 90°F (15-32°C)
Refrigeration System	Legaci Cascade
Compressor	1.0hp Copeland Compressor: Legaci Design for Low-Temperature Applications
Condenser Type	Enhanced Finned-Tube / Forced-Air Cooled
Evaporator Type	Cold Wall with Enhanced Heat Transfer Treatment
Defrost Method	Manual Defrost
Refrigerant Charge	R134a / R404a in First Stage; R404a / R508b(Suva95) in Second Stage
Power Switch	Keyed On/Off
Controller Type	Microprocessor-Based IntrLogic Control
Interior Dimensions	50.5"H X 25" F-B" X 23.5" W (128.3 H cm X 63.5 F-B cm X 59.7 W cm)
Exterior Dimensions	77.5"H X 34.25" F-B X 33.5" W (197 H cm X 87 F-B cm X 85.1 W cm)
Insulation	5 in. (12.7 cm) High Density HFC-Blown Polyurethane Foam (R=42)
Perimeter Heater	Hot Gas Halo Line
All-Direction Casters/Level Legs	Standard
Shelves / Capacity	4 Stainless Steel Shelves Adjustable In 1" Increment; Maximum Capacity/Shelf: 100 Lbs

Control System • Exclusive IntrLogic microprocessor control system with touchpad data entry and digital display of all functions • Setpoint security system with key-operated switch for main power and alarm locks in temperature and alarm setpoints • On-board power monitoring with digital readout of incoming line voltage • Built-in surge suppressor minimizes effect of voltage spikes from incoming electrical service

Alarm System • A.I.M. (Automatic Incident Monitor) identifies any temperature deviation beyond alarm setpoints, with rapid flash for current event, slow flash if event was self-corrected; A.I.M. archives most deviated temperature • Adjustable safety alarm with automatic, continuous charge battery backup provides full alarm function in case of power failure • Power failure or temperature deviation triggers audible and visual warning • Digital battery indicator displays battery capacity; flashing low battery indicator advises when to replace battery • Touchpad alarm test function physically warms internal probe to simulate alarm condition • RS-232 data port with system software package • Exterior alarm contacts for connection to remote monitoring system

Monitoring System • Lifeguard compressor protection monitors performance and automatically adjusts to internal and external conditions, extending compressor life • Extreme ambient alert warns if room temperature may affect performance • Voltage boost indicator advises of low source voltage below safe parameters and indicates voltage boost system is activated • Surge suppressor indicator advises to check intercept fuse • Clean filter indicator light advises when to remove
