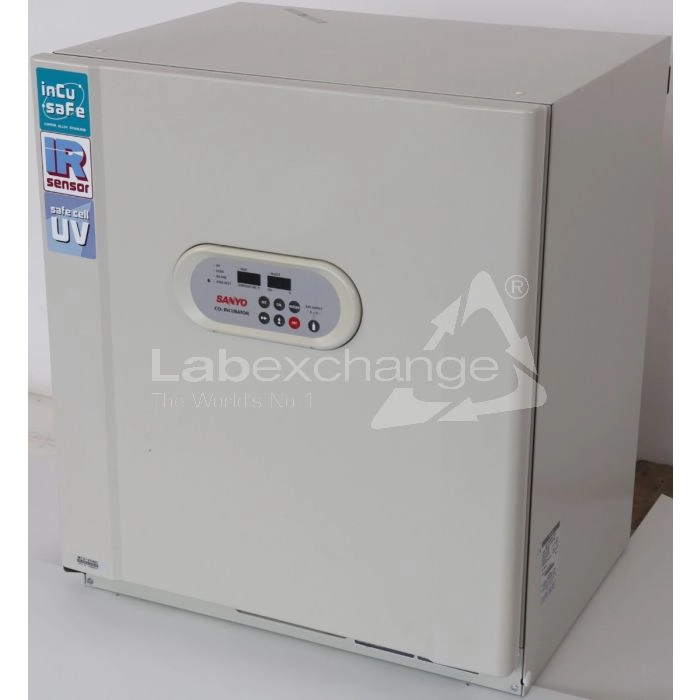

Sanyo MCO-19AIC(UV) CO2 Incubator

Temperature Range

Ambient +5°C to 50°C

CO2 Range

0 to 20%

Volume

6 Cu. Ft. (170L)

Features

Advanced humidity and temperature control technology for precise culture conditions

Direct heat and air jacket system eliminates the need for water and provides even heat distribution

Dual detector infrared CO2 sensor maintains constant conditions regardless of humidity or temperature changes

Safe Cell UV contamination control system ensures a sterile environment

Rigid polyurethane foamed-in-place insulation for efficient temperature control

PID control system for temperature and CO2 levels with digital displays

Air circulation with fan assistance for uniform conditions

The Sanyo MCO-19AIC(UV) CO2 Incubator features unprecedented humidity and temperature control technology, which provides both flexible and robust stability control for cultures. The new direct heat and air jacket system eliminates the inconvenient use of water in the incubator and provides heat from the door, side, and bottom of the unit. The Sanyo MCO-19AIC utilizes a dual detector infrared CO2 sensor, which is not affected by changes in humidity or temperature, maintains constant conditions via the microprocessor control, and automatically calibrates using room air temperature as reference. Also features Safe Cell UV contamination control system.

All of our equipment is fully tested to perform at factory specifications before being shipped.

INCLUDED:

The Sanyo MCO-19AIC(UV) CO2 Incubator includes:

> 2 Shelves

> Humidity Pan

> Calibration and Preventative Maintenance Report

> Power Cord

> Operator's Guide

> Full 180 Day Parts and Labor Warranty

Sanyo MCO-19AIC(UV) CO2 Incubator Specifications

Temperature Range :	+5°C above ambient to 50°C (in a 5°C to 35°C ambient).
Temperature Uniformity :	± 0.25°C in 25°C ambient, setting 37°C, 5% CO2, no load.
Temperature Controller :	PID Control System
Temperature Display :	Digital Display
Volume :	6 cu. ft. (170L)
CO2 Range :	0% to 20%
CO2 Controller :	PID Control System
CO2 Density Display :	Digital Display
CO2 Control Deviation :	± 0.15% in 25°C ambient, setting 37°C, 5% CO2, no load
CO2 Sensor Platform :	Ceramic based, single beam Infrared sensor, with dual wavelength measurement for continuous auto-zero calibration
Interior volume :	6 Cu. Ft. (170L)
Access port :	Inner diameter: 30 mm, On the back side
Trays :	4 trays made of stainless steel containing copper 450 x 450 x 12 mm (W x D x H), Maximum load: 7 kg/tray
Insulation :	Rigid polyurethane foamed-in place
Heating system :	DHA system (heater jacket + air jacket system)
Heater :	314 W
Humidifying system :	Natural evaporation with humidifying pan
Air circulation :	Fan assisted
Air filter :	0.3 Pm, Efficiency: 99.97% or higher
UV lamp :	4W X 1 (ozone-free emission)
Water level sensor :	Optical
Alarms :	Automatic set temperature alarm, Automatic set CO2 density alarm, Upper limit temperature alarm, Door alarm, Low humidifying water alarm, UV lamp failure alarm (for UV equipped model only)
Remote alarm contacts :	Allowable contact capacity: 30 VDC, 2 A
CO2 inlet connection :	4 to 6 mm diameter tube
CO2 inlet pressure :	0.03 MPaG (0.3 kgf/cm2 G, 4.3 psiG)
Weight :	93 kg
Internal Dimensions (W x D x H) :	19.3 x 20.6 x 26.2 in. (49 x 52.3 x 66.5 cm)
External Dimensions (W x D x H) :	24.4 x 28 x 35.4 in. (62 x 71 x 90 cm)
Electrical Requirements :	110-120V, 60Hz

Incubator Inspection and Recertification Checklist

Inspect the display for any dim, flickering, or dead pixels, replacing any affected areas to maintain full readability and operational clarity

Thoroughly examine external regulators for any signs of damage, wear, or malfunction (if applicable), replacing any compromised parts

Inspect temperature, CO₂, and H₂O sensors (if applicable), ensuring each sensor is functioning correctly and accurately reporting conditions

Conduct a detailed inspection of all internal wiring for frays, tears, or breakages; replace any compromised wires to ensure safe and reliable connections

Verify that software settings align with the internal components and calibration specifications, adjusting configurations as needed for accurate operation

Inspect and clean the fan, ensuring it is free from dust or obstructions; replace if performance is below required standards

Examine wheels and leveling mounts for structural integrity, ensuring proper balance and stability for safe operation

Inspect door gaskets and latches for any signs of wear or damage, replacing if necessary to maintain a secure seal and optimal environmental control

Calibrate temperature accuracy at 37°C using a NIST-traceable probe, confirming it meets required tolerances

Calibrate CO₂ level to 5% using a Fyrite combustion test kit (if applicable), ensuring precise atmospheric conditions

Monitor temperature and CO₂ stability over a 24-hour period, verifying consistent operation within specified ranges

Conduct a thorough cosmetic inspection to confirm all external surfaces and components meet quality standards, free from visible damage or wear

Technician Inspection and Recertification Checklist: Incubator

The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment

Task:	Completed?:	Remarks?
Inspect display for dim, flickering, or dead pixels; replace for readability:	Completed:
Examine external regulators for damage or malfunction; replace compromised parts:	Completed:
Inspect temperature, CO₂, and H₂O sensors for correct function and accuracy:	Completed:
Inspect internal wiring for frays, tears, or breakages; replace compromised wires:	Completed:
Verify software settings align with components and calibration specs; adjust if needed:	Completed:
Clean fan and remove dust/obstructions; replace if performance is substandard:	Completed:
Examine wheels and leveling mounts for structural integrity and balance:	Completed:
Inspect door gaskets and latches for wear or damage; replace to maintain seal:	Completed:
Calibrate temperature at 37°C with NIST-traceable probe to confirm accuracy:	Completed:
Calibrate CO₂ level to 5% with Fyrite test kit for atmospheric precision:	Completed:
Monitor temperature and CO₂ stability over 24-hour period to verify consistency:	Completed:
Conduct cosmetic inspection to confirm quality of external surfaces and components:	Completed:

To View More of Our Recertification Protocol Click Here

Downloads

Technical Specification Download

Operator's Manual Download

Typically Ships Within: 3 to 5 Business Days
