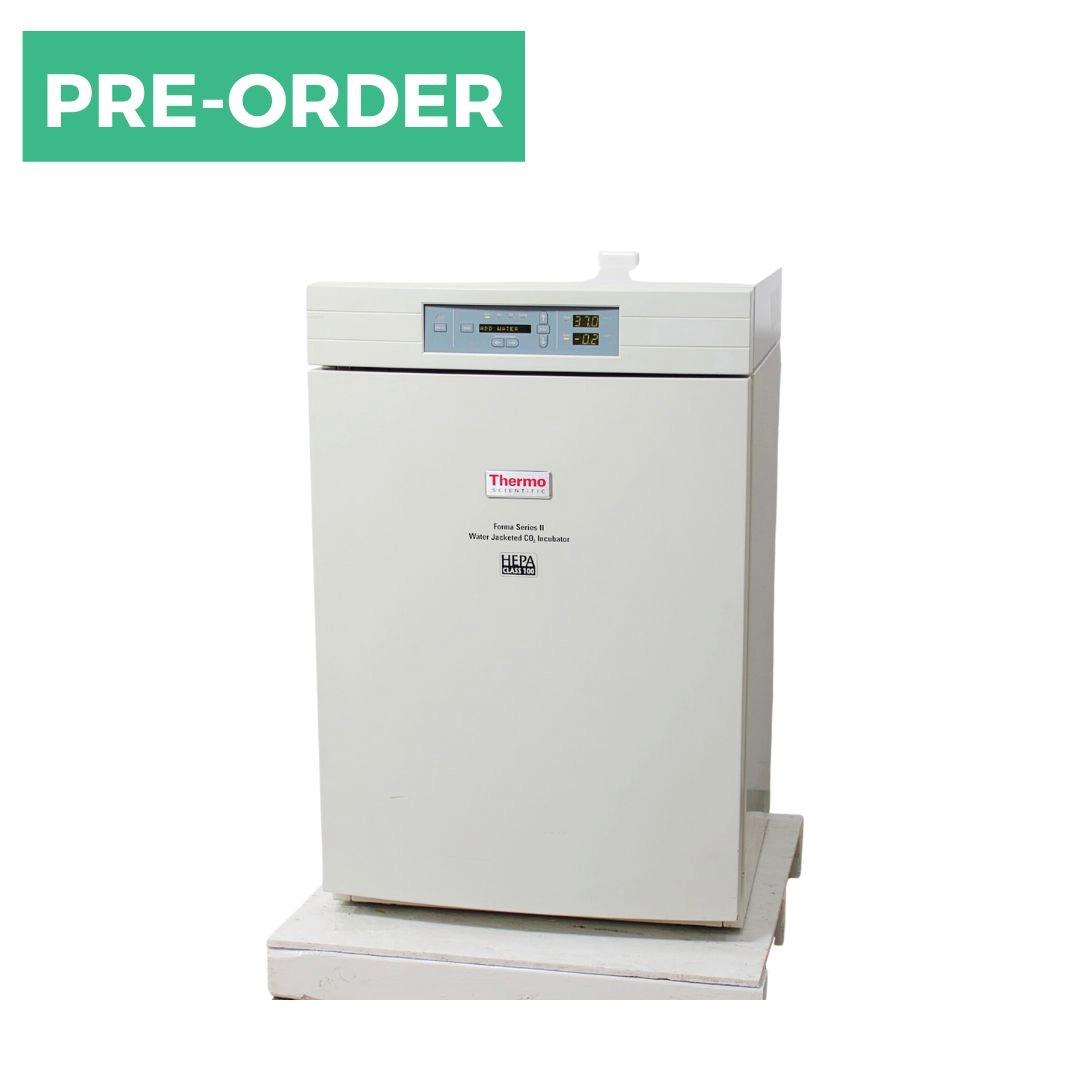

The Thermo Electron Corporation 3120 CO2 Water Jacketed Incubator combines precise CO2 control, unsurpassed temperature stability, and superior parameter recovery characteristics, with innovative continuous contamination control technology. Maximum thermal stability and quick recovery are assured with unique triple wall construction, providing superior protection against temperature loss in the event of an unexpected power outage. Total Contamination Control minimizes the risk of airborne contaminants entering the incubator upon door openings, with a validatable in-chamber HEPA air filtration system, maintaining your cultures in cleanroom-like Class 100 air quality conditions.

Specifications:
Temperature Control	±0.1°C
Temperature Range	5°C above ambient to 50°C (122F)
Temperature Uniformity	±0.2°C @ 37°C (98.6F)
Tracking Alarm	User-programmable high/low
Sensor	Precision thermistor
Controller	Independent analog electronic
Setability	0.1°C
CO2/O2 Control	Better than ±0.1%
CO2 Range	0-20%
O2 Range	1-20%
Inlet Pressure	15 PSIG (1.0 bar)
CO2 Sensor	T/C or IR
O2 Sensor	Fuel cell
Readability & Setability	0.1%
Tracking Alarm	User-programmable high/low
Relative Humidity	Ambient to 95% @ 37°C (98.6F)
Humidity Pan	3.2 qt. (3.0 liters) standard
Fill Port	3/8" hose (barbed)
Drain Port	1/4" hose (barbed)
Access Port	1.3" (3.3cm) with removable silicone plug with filter
CO2 Inlet	1/4" hose (barbed)
Unit Heat Load	115V/230V 344 BTUH (100 Watt)
Shelf Dimensions	18.5" x 18.5" (47 x 47 cm)
Construction	Stainless steel, perforated
Surface Area	2.4 sq. ft. (0.2 sq. m)
Max. per Chamber	40.8 sq. ft. (3.8 sq. m)
Standard, Maximum	4, 17
Water Jacket Volume	11.7 gal. (43.5 liters)
Interior Volume	6.5 cu. ft. (184.1 liters)
Interior	Type 304, mirror finish, stainless steel
Exterior	18 gauge, cold-rolled steel, powder coated
Outer Door Gasket	Four-sided, molded, magnetic vinyl
Inner Door Gasket	Removable, cleanable, feather-edged, silicone
Power	115V, 50/60 Hz, 3.6 FLA (Operating range 90-125V)
Circuit Breaker	6 Amps/2 Pole
Plug	NEMA 5-15P Plug
Dimensions, Exterior	26" W x 25" D x 39.5" H (66 x 63.5 x 100.3 cm)
Dimensions, Interior	21.3" W x 20" D x 26.8" H (54.1 x 50.8 x 68.1 cm)
Weight	265 lbs. (120.2 kg)
Net Operational Weight	365 lbs. (165.6 kg)
