Exhaust Blower for 10 foot fume hood | KA Centrifugal Upblast Roof Mount Exhaust Blower with roof curb Package

Manufacturer: KA

Model: QLEB10-RC

Condition: New

Estimated lead time: Typically ships in 2 weeks from order and payment.

Warranty: 1 year limited manufacturer's warranty (parts)

These are custom made. No returns of open units are accepted.

Includes:

New model QLEB10-RC exhaust blower rated for 10 ft benchtop fume hood, up to 50 feet of ductwork with up to two 90 degree elbows/turns.
New Roof Curb: Adj. Nonventilated Curbs, Square Curb, 10 1/2 in to 19 in Inside Dimensions

Specifications for exhaust fan

Drive Type: Direct Drive
Includes Drive Package with Motor: Yes
Wheel Diameter: 14.75 in
Exhaust Airflow @ 0.500 in SP: 2506 cfm
Maximum Static Pressure: 1-1/2 in wc
For High-Static Pressure Applications: No
Nameplate Voltage: 115V/230V AC
Phase: 1
Frequency: 60 Hz
Current: 10.6A/5.3A
Electrical Connection: Power Cord
Motor Horsepower: 3/4 hp
Brake Horsepower: 1/4 hp
Motor Speed: 1,725 RPM
Maximum Fan Speed: 1,725 RPM
Motor Enclosure: Open Drip-proof
Motor Location: Out of Airstream
High-Efficiency Motor: Yes
Speed Controllable: No
Number of Speeds: Variable
Wheel Type: Backward Inclined
Wheel Material: Aluminum
Housing Material: Aluminum
Housing Material Fabrication: Spun
Maximum Ambient Temperature: 300 °F
Maximum Inlet Air Temperature: 300 °F
Base Shape: Square
Base Dimensions (HxWxL): 1.8" x 26" x 26"
Overall Height: 31.5 in
Mounting Location: Roof
Mounting Orientation: Vertical
Mount Type: Roof Curb
Standards: AMCA Sound and Air; UL/cUL 762
Includes: NEMA 1 Junction Box
Resistance Properties Spark Resistant
Compatible Curb Part Number 2RB77
Compatible Speed Control 48C172
Brand: DAYTON
Features: Non-overloading Centrifugal Wheel Design
UNSPSC: 40101502
Country of Origin: USA (subject to change)

Product Description

KA direct-drive fans help to ventilate a kitchen or similar environment with grease-laden or humid air. They feature a propeller that's directly mounted on the motor shaft. This reduces friction and improves efficiency when compared to a belt-drive fan. Direct-drive fans also have fewer moving parts and typically require less maintenance than belt-drive fans. Fans intended for use with heavy grease feature steel propellers and housings which are easier to clean and are less reactive to cleaning chemicals.

Specifications for Roof Curb

For Fan Type Downblast Fans; Filtered Supply Fans; Upblast Fans
Brand: DAYTON
Curb Shape: Square
Curb Height: 12 in
Finish: Galvanized
Metal Material Thickness: 18 ga
Material: Steel
Standards: UL 705
Curb Inside Width: 21.5 in
Curb Outside Width: 24.5 in
Adjustability: Adjustable
Ventilation Type: Nonventilated
Flashing Flange Width: 4 in
UNSPSC: 30151609
Country of Origin: Mexico (subject to change)

Product Description: Roof curbs provide a sturdy, weather-resistant mounting point for roof-mounted fans. They can be adjustable or come in fixed sizes to fit a variety of installations. They also can be ventilated or non-ventilated to comply with your local HVAC codes.

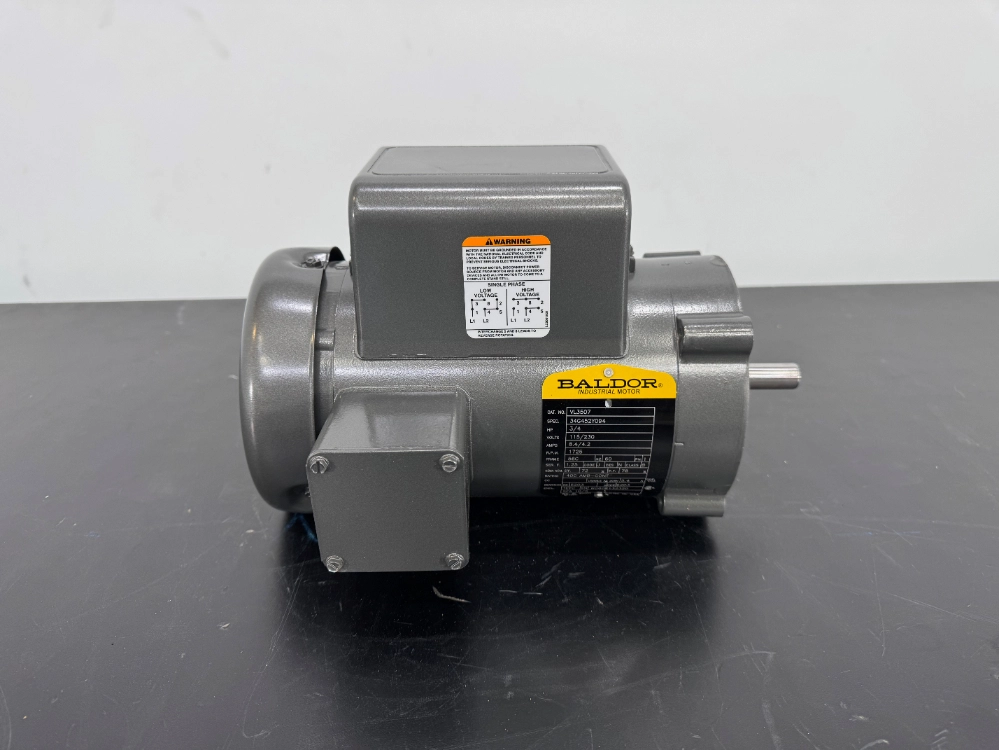

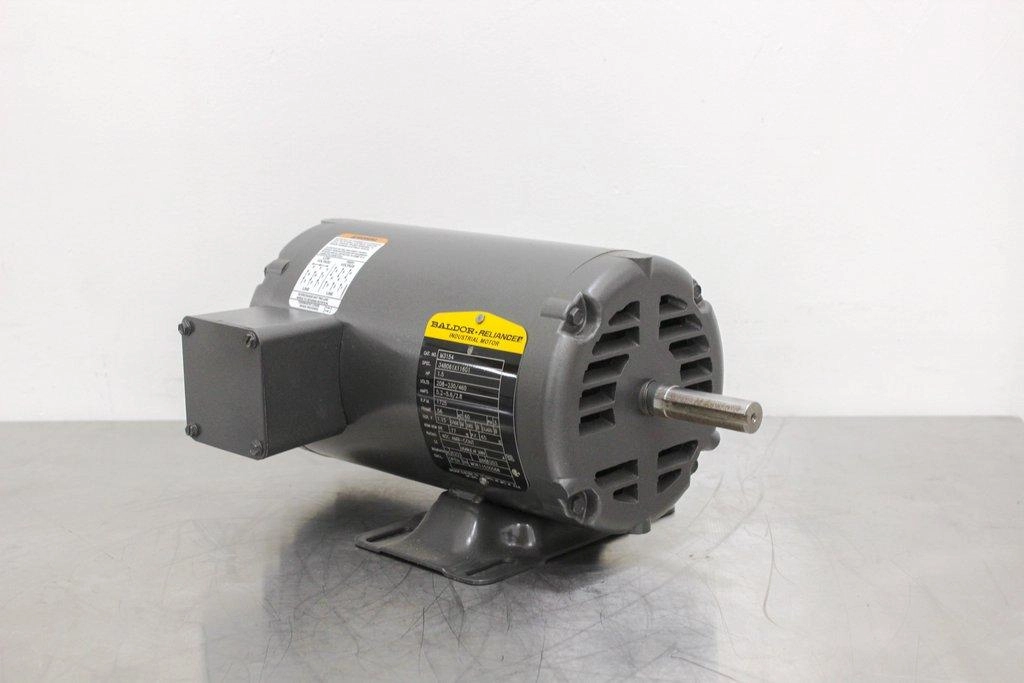

Baldor Motors
