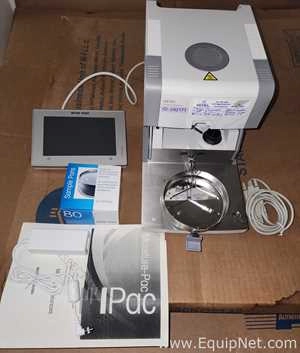

Ohaus MB120 Moisture Analyzer

Maximum Capacity

120 g

Readability Moisture Content

1 mg / 0.01%

Moisture Range

0 to 100%

Features

High-performance moisture analyzer with a maximum capacity of 120g and 1 mg/0.01% readability for precise moisture content determination

4.3" full-color TFT touchscreen display for easy navigation and control

Halogen heating system with a temperature range of 40°C to 230°C for fast and accurate results

Four drying profiles: standard, fast, ramp, and step, to accommodate various sample types

SmartGuide™ feature automatically analyzes samples and creates methods, simplifying setup

Storage capacity for up to 100 methods and 1,000 test results, allowing for efficient data management

RS232, USB Host, and USB Device ports for easy data export and device connectivity

Durable construction with a metal base, ABS top housing, stainless steel pan support, and in-use cover

90mm stainless steel pan for versatile sample handling

Moisture affects everything we use on a daily basis therefore in many cases it is important to be able to accurately determine the moisture content of samples. Equipped to handle routine and sophisticated measurements, our flagship MB120 moisture analyzer makes the whole process faster, easier, and more efficient. The MB120 allows you to analyze more samples, access saved data, and spend less time prepping and more time putting your results to work.

CLICK HERE TO SHOW PRODUCT VIDEO

INCLUDED:

The Ohaus MB120 Moisture Analyzer includes:

> Power Cord

> Operator's Guide

> Manufacturer's Documentation

> 1 Year Manufacturer's Warranty

Ohaus MB120 Moisture Analyzer Specifications

Maximum Capacity :	120 g
Readability Moisture Content :	1 mg/0.01%
Pan Size (Ø_Diameter) :	90.0 mm (3.5 in)
Heater Type :	Halogen Lamp
Dimensions (Height) :	180.0 mm (7.09 in)
Working Environment :	50°F – 104°F, 85%RH, non-condensing
Power :	115 v, 60 Hz
Test Weight :	50g, OIML F2 or ASTM CL 4
Dimensions (Length) :	355.0 mm (13.98 in)
Dimensions (Width) :	211.0 mm (8.31 in)
In-use cover :	Included
Net Weight :	5.23 kg (11.53 lb)
Temperature Range :	40 °C – 230 °C
Operating Range (Temp.) :	10 °C – 40 °C
Shut-Off Criteria :	Manual; Timed; Automatic - Preset Weight Loss/Time; Custom - User Set Weight Loss/Time; Custom-User Set Moisture% Loss/Time
Moisture Range :	0 % – 100 %
Test Library :	100
Heating Profiles :	Standard; Ramp; Step; Fast
Sample Size :	0.5 g – 120 g
Working Environment :	10°C – 40°C, 85%RH, non-condensing
Display :	Full-Color 4.3 in Touchscreen WQVGA

Comparison of Models

Spec / Product:	Ohaus MB23 Moisture Analyzer:	Ohaus MB32 Moisture Analyzer:	Ohaus MB62 Moisture Analyzer:	Ohaus MB92 Moisture Analyzer:	Ohaus MB120 Moisture Analyzer
Maximum Capacity:	110 g:	90 g:	90 g:	90 g:	120 g
Readability Moisture Content:	10 mg / 0.1%:	1 mg / 0.01%:	1 mg/0.01%:	1 mg/0.01%:	1 mg/0.01%
Recommended Moisture Content MC%:	0.5 % - 100 %:	0.5 % - 100 %:	0.5 % - 100 %:	0.5 % - 100 %:	0.5 % - 100 %
Moisture Range:	0.01 % – 100 %:	0.01 % – 100 %:	0.01 % – 100 %:	0.01 % – 100 %:	0.01 % – 100 %
Temperature Range:	50 °C – 160 °C:	40 °C – 180 °C:	40°C to 200°C:	40 °C – 200 °C:	40 °C – 230 °C
Display:	LCD, backlight:	4" LCD with 2nd line display:	5" LCD with 2nd line display:	4.3” capacitive touch screen:	Full-Color 4.3 in Touchscreen WQVGA
Display Results:	Temperature; MC%; Weight; Time:	RG%; Temperature; DC%; Time; Method No.; MC%; Weight:	RG%; Temperature; DC%; Time; Method No.; MC%; Weight:	RG%; Temperature; Drying Curve; DC%; Time; Method Name; Statistics; MC%; Weight:	RG%; Temperature; MC%; DC%; Time; Method Name; Weight
Operation Instructions:	N/A:	On-screen Instruction; Progress Indicator:	Graphic Instruction; On-screen Instruction; Progress Indicator:	Live Drying Curve; On-screen Instruction:	On-screen Instruction
Electrical Requirements:	120 VAC 50/60 Hz:	120 VAC 50/60 Hz:	120 VAC 50/60 Hz:	120 VAC 50/60 Hz:	120 VAC 50/60 Hz
Price :	$3,495.20 :	$2,805.00 :	$3,570.00 :	$4,373.25 :	$5,945.75

Downloads

Technical Specification Download

Operator's Manual Download

Manufacturer's List Price: $6,995.00

Typically Ships Within: 8 to 10 Weeks Request a Formal Quote Quantity in Stock:3 Product Code: 30241165
