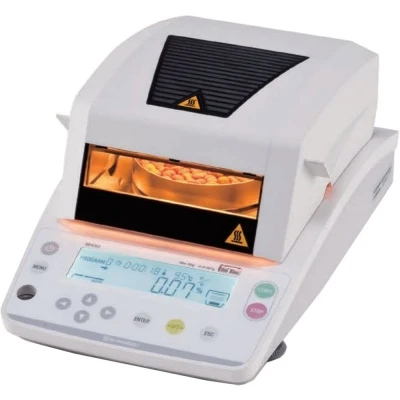

A&D Weighing MS-70 Moisture Analyzer

Capacity

71 g

Weight Resolution

0.0001g

Moisture Content Accuracy

0.05 % (Over 1 g)

0.01% (Over 5 g)

Features

4 Selectable heating modes from standard, quick, step and ramp that help customize heating curves to your unique sample types for accuracy & precision

5 Selectable measurement programs to best fit sample and process with STANDARD, QUICK, AUTOMATIC, TIMER, MANUAL

Clear & easy-to-view with the large VFD display means setting values, change in moisture content, action status indicators, and data number are clearly visible

Safe & Reliable Design

Easy handles & ergonomic design helps to prevent burn injuries while improving workflow movements of samples in and out efficiently

Self Check functions such as defect check function along with temperature control checks have you covered

Progress window allows easy visibility to see heating process through translucent window

Quick Reference Card for convenient operating guide is installed at the bottom of the analyzer

Data Interface is a breeze with RS-232C interface and our WinCT–Moisture software that helps determine measurement conditions as well as optimize time & accuracy

Data memory function allows for test results to be stored and recalled or outputted for additional analysis

GLP, GMP, GCP and ISO compliant with date/time, ID, calibration data and check record outputs

The A&D Weighing MS-70 Moisture Analyzer is a top-tier solution designed for labs requiring the highest level of precision and versatility in moisture analysis. Featuring four selectable heating modes—standard, quick, step, and ramp—the MS-70 offers customizable heating curves to perfectly match the unique requirements of diverse sample types, ensuring accurate and repeatable results every time. With five distinct measurement programs (Standard, Automatic, Quick, Timer, and Manual), users can easily select the ideal method for each process, maximizing efficiency and adaptability.

The large, easy-to-read VFD display presents all critical information—moisture change, set values, action status, and data numbers—clearly, facilitating smooth operation. The MS-70’s ergonomic design, complete with safety-oriented handles and a progress-view window, enhances workflow by reducing handling errors and preventing accidental burns. Self-check functions further ensure reliability by continuously monitoring defect and temperature controls.

Data management is streamlined with the RS-232C interface and WinCT–Moisture software, making data export, analysis, and GLP/GMP/GCP/ISO-compliant reporting effortless. The memory function stores up to 20 unique measurement conditions and 100 test results, allowing for quick setup recall and reliable documentation. Designed with high-performance halogen heating technology, capable of detecting even slight moisture drops (under 1% with PET samples), the MS-70 promises accuracy, ease, and safety, backed by dependable long-term performance. Backed by a comprehensive 5-year warranty, the MS-70 Moisture Analyzer offers lasting reliability and peace of mind for your lab's moisture analysis needs.

INCLUDED:

The A&D Weighing MS-70 Moisture Analyzer includes:

> 20 Sample Pans

> Pan Support

> Pan Handle

> Tweezers

> Spoon

> Glass Fiber Sheet

> RS-232C Cable

> Display Cover

> Dust Cover

> Breeze Break Ring

> Halogen Lamp

> Power Cord

> Operator's Manual

> Manufacturer's Documentation

> 5 Year Manufacturer's Warranty

A&D Weighing MS-70 Moisture Analyzer Specifications

Maximum Capacity:	71 g
Readability (Weight):	0.0001 g
Readability (Moisture Content):	0.001% / 0.01% / 0.1%
Repeatability:	0.05%
Standard Deviation (over 5g sample):	0.01%
Drying Temperature Range:	30 to 200°C
Heater Type:	Halogen lamp (400 W)
Display Type:	Large VFD
Heating Modes:	Standard / Quick / Step / Ramp
Measurement Programs:	Standard Mode, Quick Mode, Timer Mode, Manual Mode
Communication Interface:	RS-232C standard
Memory of Measurement Programs:	20 Sets
Operating Temperature:	5-40°C (41-104°F), less than 85% RH
Data Memory Function:	100
Sample Pan Size:	Ø 85 mm
Weight:	13.2 lb. (Approx. 6 kg)
Dimensions (W x D x H):	8.46 x 12.6 x 6.8 in. (215 mm x 320 mm x 173 mm)
Electrical Requirements:	AC 100V to 120V (3A) 50/60 Hz, Approx. 400W

Comparison of Models

Spec / Product:	A&D Weighing MS-70 Moisture Analyzer:	A&D Weighing MX-50 Moisture Analyzer:	A&D Weighing MF-50 Moisture Analyzer:	A&D Weighing ML-50 Moisture Analyzer
Maximum Capacity:	71 g:	51 g:	51 g:	50 g
Readability (Weight):	0.0001 g:	0.001 g:	0.002 g:	0.005 g
Readability (Moisture Content):	0.001% / 0.01% / 0.1%:	0.01% / 0.1%:	0.05% / 0.1% / 1%:	0.1% / 1%
Standard Deviation (over 5g sample):	0.01%:	0.02%:	0.05%:	0.10%
Drying Temperature Range:	30 to 200°C:	50 to 200°C:	50 to 200°C:	50 to 200°C
Drying Modes:	Standard, Quick, Step, Ramp:	Standard, Quick, Step, Ramp:	Standard, Quick, Step, Ramp:	Standard, Quick
Measurement Programs:	Standard Mode, Quick Mode, Timer Mode, Manual:	Standard Mode, Quick Mode, Timer Mode, Manual:	Standard Mode, Quick Mode, Timer Mode, Manual:	Standard Mode, Quick Mode, Timer Mode, Manual
Memory of Measurement Programs:	20 Sets:	20 Sets:	10 Sets:	5 Sets
Electrical Requirements:	AC 100V to 120V (3A) 50/60 Hz, Approx. 400W:	AC 100V to 120V, 50/60 Hz, Approx. 400W:	AC 100V to 120V, 50/60 Hz, Approx. 400W:	AC 100V to 120V, 50/60 Hz, Approx. 400W
Included Accessories:	20 Sample Pans, Pan Support, Pan Handle, Tweezers, Spoon, Glass Fiber Sheet, RS-232C Cable, Display Cover, Dust Cover, Breeze Break Ring, Halogen Lamp:	20 Sample Pans, Pan Support, Pan Handle, Tweezers, Spoon, Glass Fiber Sheet, RS-232C Cable, Display Cover, Dust Cover, Breeze Break Ring, Halogen Lamp:	20 Sample Pans, Pan Support, Pan Handle, Tweezers, Spoon, Glass Fiber Sheet, Display Cover, Dust Cover, Breeze Break Ring, Halogen Lamp:	10 Sample Pans, Pan Handle, Display Cover, Dust Cover, Breeze Break Ring, Halogen Lamp
Price :	$5,148.75 :	$3,206.25 :	$2,587.50 :	$2,171.25

Downloads

Technical Specification Download

Operator's Manual Download
