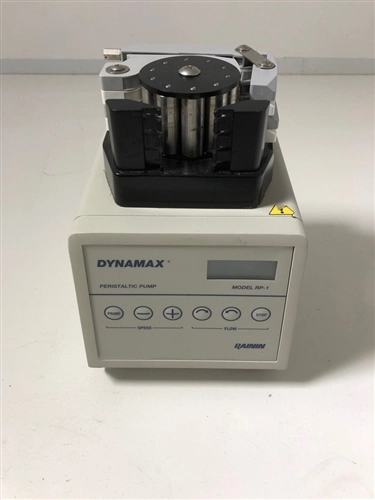

Rainin Dynamax RP-1 Peristaltic Pump

"

Head Speed

0 to 48 RPM

Speed Stability

0.005

Flow Rate

0 to 37 mL/min max at 0 backpressure

Features

Autostart function that automatically restarts the pump at the same speed after a power interruption.

Idle Mode Post Power Interruption function keeps pump idle under power fluctuations.

Multi-channel head ensures low pulsation, smooth flow, and high pressure.

Provides clear and precise readouts for easy monitoring of the pump settings.

Offers both clockwise and counterclockwise operation, with easy switching between these modes for diverse application needs.

"

The Rainin Dynamax RP-1 Peristaltic Pump is in excellent condition. The Rainin Dynamax RP-1 Peristaltic Pump has a maximum speed of 48 rpm. Flow rates up to 37 ml per minute. The Dynamax RP-1's multi-channel head ensures low pulsation, smooth flow, and high pressure for a variety of fluid transfer applications, especially ideal for critical liquid chromatography, gradient generation, and flow analyzer applications and can accommodate a 4 or 8 channel head.

The Rainin Dynamax RP-1 Peristaltic Pump will be fully tested to perform at factory specifications before being shipped.

INCLUDED:

The Rainin Dynamax RP-1 Peristaltic Pump includes:

> 4 Channel Head

> Power Cord

> Operator's Manual

> Full 180 Day Parts and Labor Warranty

Rainin Dynamax RP-1 Peristaltic Pump Specifications

Head Speed :	0 to 48 RPM
Torque :	>3 N-m across full operating range at 115VAC
Speed Stability :	0.5%
Speed Adjustment :	0.00 to 9.99 RPM in 0.01 RPM increments; 10.0 to 48.0 RPM in 0.1 RPM increments
Flow Rate :	0 to 37 mL/min max at 0 backpressure (depending on tubing diameter)
Flow Tubing Diameter :	0.25 mm ID - 4 mm ID
Dimensions (W x D x H) :	160 x 190 x 275 mm (6.3 x 7.5 x 10.83 in)

Rainin RP-1 Peristaltic Pump Manual

Click Here to View all the Technical Specs for the RP-1 Peristaltic Pump

Peristaltic Pump Inspection and Recertification Checklist

Verify power supply and PCB voltage outputs for accuracy and stability

Inspect display for dim or dead pixels, replacing any compromised segments

Test full functionality of speed, time, and start/stop buttons

Confirm proper bidirectional rotation of the pump head

Examine all internal wiring within the casing for secure and intact connections

Inspect pump head for any blockages or obstructions that could hinder rotation

Confirm functionality of the fan, replacing if performance is suboptimal

Inspect and clean the internal casing to maintain optimal conditions

Verify RPM of pump head using a NIST-traceable tachometer

Conduct a cosmetic inspection to ensure all surfaces meet quality standards

Technician Inspection and Recertification Checklist: Peristaltic Pumps

The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment

Task:	Completed?:	Remarks?
Verify power supply and PCB voltage outputs for accuracy and stability:	Completed:
Inspect display for dim or dead pixels; replace any compromised segments:	Completed:
Test full functionality of speed, time, and start/stop buttons:	Completed:
Confirm proper bidirectional rotation of the pump head:	Completed:
Examine all internal wiring for secure and intact connections:	Completed:
Inspect pump head for blockages or obstructions:	Completed:
Confirm fan functionality, replacing if performance is suboptimal:	Completed:
Inspect and clean internal casing to maintain optimal conditions:	Completed:
Verify RPM of pump head using a NIST-traceable tachometer:	Completed:
Conduct cosmetic inspection to ensure all surfaces meet quality standards:	Completed:

To View More of Our Recertification Protocol Click Here

Typically Ships Within: 1 to 3 Business Days
