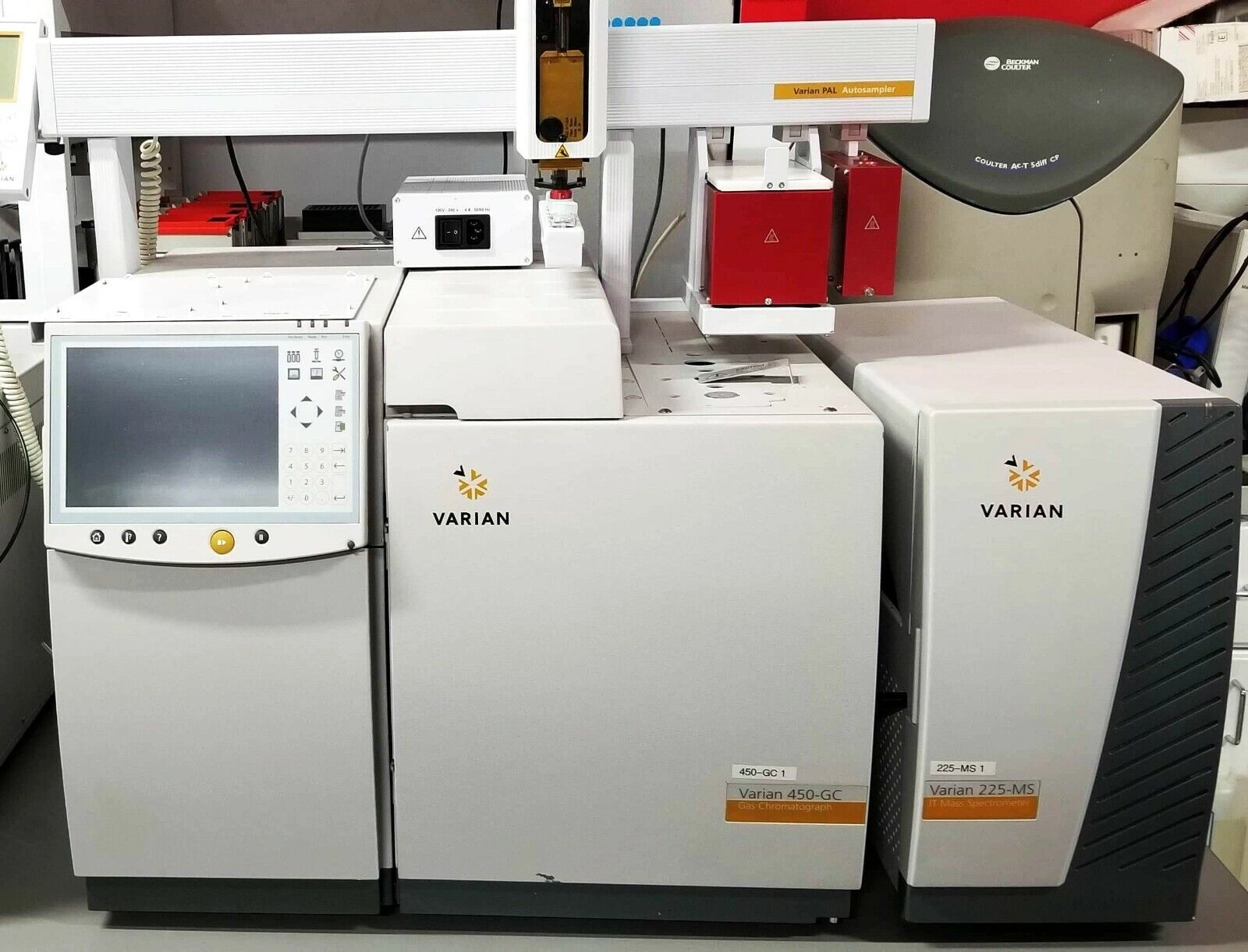

We at IDE Have a Varian 450-GC, 225-MS W/ PAL Autosampler Headspace FID Detector PC and Software For Sale!! INCLUDES: - Varian 450-GC - Varian 225-MS - Varian PAL Autosampler w/ Power Supply- 30 Day Warranty ** Available separately:- Refurbished- Preventive maintenance - Installlation and more, ask us any questions you might have VARIAN 450-GC The 450-GC is Varian’s premier, top of the line gas chromatograph. It offers single, dual or triple channel configuration flexibility and automation for maximum productivity. The 450-GC is easily reconfigured/upgraded in the laboratory as analysis requirements can and do change. Specifications: - Dimensions and Weights: Size: 53 cm (h) x 66 cm (w) x 56 cm (d). Weight: 43 kg. - Environmental Conditions: Operating temperatures: 10 °C to 40 °C. Operating humidity (relative): 5 % to 95 %. Line voltage requirements: 101 V, 120 V, 230 V (±10 %nominal). - Column Oven Dimensions: 28 cm (w) x 20 cm (d) x 28 cm (h). Temperature range:Ambient temp.: +4 °C to 450 °C.With liquid N2: -99 °C to 450 °C.With liquid CO2: -65 °C to 450 °C. Temperature program ramps/holds: 24/25. Maximum temperature ramp rate: 120 °C /min for allvoltages. Cool down rate: 400 °C to 50 °C in 4.5 minutes. Temperature set-point resolution: 1 °C. - General Specifications GC Control: External events (digital output):7 standard.8 optional. - Max number of timed events: 15 x 99. - Heated zones: 7 (including column oven). - Local display and control: Display: • TFT full color screen. • VGA resolution (640 x 480). • 8.4 ” (20 cm). Control: • Touch screen. • Hard keys. Maximum stored methods: 50 (max 30 alphanumeric characters). System operational qualities: High inertness: sample path UltiMetalTMtreatment (optional).Low level detection assurance: purged valves(optional). - Logging: • Run log file (stored with the chromatogram when using GalaxieTM or WSMS). • Error log file. - Communication Ethernet: Protocol: TCP/IP. Data rate: 100 Mbps. Control: GC control and method parameters. Analog output (optional):Number of channels: 3.Time programmable steps: 25.Output (set individual): • 0-1 V (default). • 0-10 V. Synchronization signals with other devices and datasystems:Ready in.Start out. Data handling and system control: GC: Galaxie Chromatography Data System(CDS).GC/MS: MS workstation (see GC/MSbrochure and datasheet for moreinformation). VARIAN 225-MS The Varian 225-MS is the first fully integrated MS system, including a compact, built-in vacuum module. The 225-MS along with the Varian 450-GC provides the highest level of flexibility, performance and convenience in an easy-to-use system. SpecificationsMass Analysis• Mass range: 10 to 650 Da; scan range is timeprogrammable throughout the run• Resolution: Unit mass, measured as 10% valley, over theentire range• Mass calibration stability: RF-only field is stablefor weeks to several months at constant analyzertemperature and helium flow• Scan rate: Fixed at 5600 Da/s to maximize spectralacquisition• Selected Ion Storage (SIS): Stores up to five ranges ofions; ejects matrix, column bleed• Linear dynamic range: 103 to 104 (compound dependentbased upon analytical methods)• Filament assembly: Dual filament• Transfer line temperature: Independent control;maximum 350 °C• Manifold temperature: Independent control; maximum120 °C• Analyzer temperature: Independent control; anodizedblock; maximum 250 °C• Electrode surface: Chrome (standard)• Power fail protection: Solenoid closes septum purgeline and supplies supplemental helium flow through thecolumn to vent MS VARIAN PAL AUTOSAMPLER The PAL sample injectors enable GC and GC/MS laboratories to increase productivity with greater automated sample preparation capabilities and a variety of sample vial options. The high-end PAL3 sample injector offers three types of sample injection techniques: liquid injection, headspace, and solid phase microextraction (SPME). The lower-cost GC injector platform can be configured for liquid injection only but offers many of the other capabilities of the PAL Autosampler System including large volume injection (LVI), multiple vial sizes, and extended sample vial capacity. · Top-mounted on GCs to save valuable bench space· Interfaces with any Agilent 6890, 7890, or 5975T GC· Integrated software control available for OpenLAB CDS (ChemStation & EZChom Editions) and MassHunter GC/ MS Software. Multiple sample overlap capability now available on OpenLAB CDS ChemStation edition.· Solid Microphase MicroExtraction (SPME) · Heated syringe headspace· Large-volume injection up to 500 µ

Varian 450-GC
