Electrophoresis Power Supplies: Key Features and Buying Tips

Understanding Constant Voltage, Current, and Power Modes

The operational mode of an electrophoresis power supply is a critical determinant of how an experiment proceeds and influences the quality of the final separation. There are three primary modes: constant voltage, constant current, and constant power. Each mode provides a distinct advantage depending on the experimental goal.

• Constant Voltage: In this mode, the voltage across the gel remains fixed throughout the run. This is the most common mode for agarose gel electrophoresis, particularly for nucleic acid separation. The benefit is that the separation is driven by a consistent electrical potential, which is ideal for a stable gel temperature. However, as the electrophoresis progresses and ions in the buffer migrate or become depleted, the resistance of the system can change. This leads to a decrease in current and, consequently, a slower migration rate over time.

• Constant Current: This mode maintains a fixed current, allowing the voltage to fluctuate as needed. This is often the preferred choice for SDS-PAGE (protein) electrophoresis. A constant current helps maintain a more uniform separation because the heat generated (P=I2R) is directly proportional to the resistance, which can be managed by the system. This prevents protein bands from "smiling" or becoming distorted due to uneven heat distribution. The voltage will typically increase throughout the run as resistance changes, which may require monitoring to prevent the system from exceeding its maximum voltage.

• Constant Power: In this advanced mode, both voltage and current are allowed to vary while their product, the power (P=IV), remains constant. This mode is particularly useful for sensitive separations that require strict temperature control, as a constant power output ensures a consistent rate of heat generation. Maintaining a constant temperature is crucial for preventing protein denaturation and achieving sharp, well-defined bands. While more technically complex, this mode offers the highest level of control and reproducibility for demanding applications.

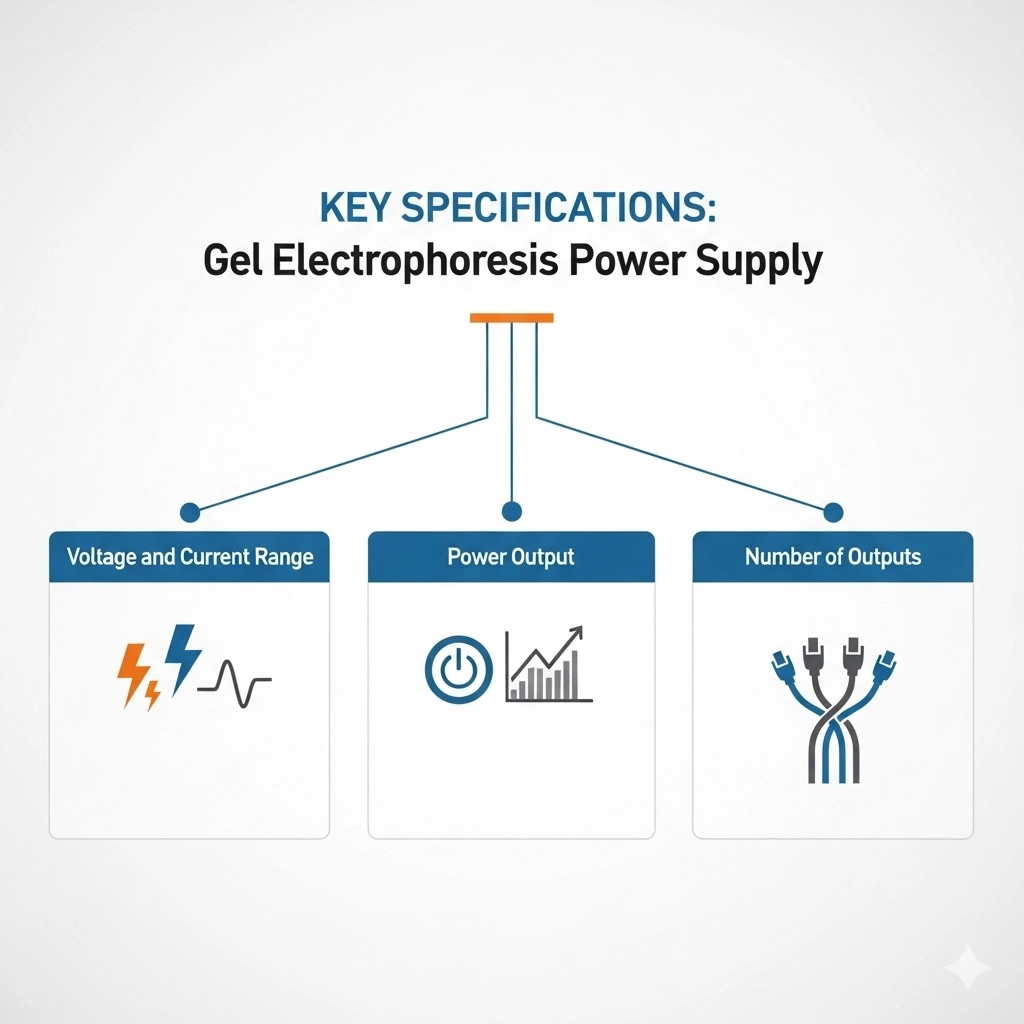

Key Technical Specifications: A Practical Guide

Beyond the operational mode, several key specifications define a power supply's capabilities and suitability for a given task.

• Voltage and Current Range: The voltage and current capacity must be sufficient for the intended applications. Standard DNA electrophoresis typically requires lower voltages (50-150 V), while protein electrophoresis can require higher voltages (200-300 V) or more. Power supplies with a wide voltage range are versatile and can accommodate a variety of gel types and formats. A higher current capacity is important for running multiple gels simultaneously or for larger gels.

• Power Output: The total power output, measured in watts (W), indicates the overall capacity of the unit. A higher wattage allows for faster runs or the ability to handle higher-resistance buffer systems without the power supply reaching its limits. For most laboratory applications, a power supply with a rating between 100 W and 300 W is generally sufficient, but specialized applications may require higher ratings.

• Number of Outputs: Many power supplies feature multiple output jacks, allowing for the connection and simultaneous running of multiple gel tanks. This is a significant advantage for busy labs, as it increases throughput and efficiency. A power supply with multiple independent outputs offers even greater flexibility, as each output can be programmed with different parameters, allowing for simultaneous runs of different experiments.

Programmability and Advanced Features for Modern Labs

Modern electrophoresis power supplies offer a range of advanced features that can enhance experimental control and data collection.

• Programmable Methods: The ability to store and recall pre-set electrophoresis methods is a valuable feature that saves time and improves reproducibility. A user can program a method for a specific gel type, saving the optimal voltage, current, and run time, eliminating the need to manually set parameters for each experiment.

• Data Logging and PC Connectivity: Some high-end models offer data logging capabilities, recording run parameters such as voltage, current, and time. This data can be exported to a computer, providing a detailed record for troubleshooting or for compliance with quality assurance protocols.

• Automatic Crossover: In this feature, a power supply can automatically switch between modes (e.g., from constant voltage to constant current) once a pre-set limit is reached. This is particularly useful for optimizing complex electrophoresis protocols, ensuring the benefits of multiple modes within a single run.

Ensuring Safety and Durability in the Laboratory

Safety is a paramount consideration for any piece of laboratory equipment. A well-designed electrophoresis power supply incorporates several features to protect both the user and the experiment.

• Safety Interlocks: A primary safety feature is a lid interlock on the electrophoresis tank. This mechanism automatically shuts off the power if the lid is removed during a run, preventing accidental electrical shocks.

• Over-Current and Over-Voltage Protection: These features are designed to automatically cut the power if the current or voltage exceeds pre-set limits, protecting the power supply and the gel from damage.

• Durable Construction: The power supply should be built with a robust, insulated casing to prevent electrical hazards and withstand spills and general laboratory wear and tear.

Selecting the Right Power Supply for Your Lab

The selection of an electrophoresis power supply is a strategic decision that influences the efficiency and quality of a laboratory's molecular biology and biochemistry work. The ideal power supply is a balance of operational modes, technical specifications, and safety features tailored to the specific needs of the lab. A fundamental understanding of constant voltage versus constant current is the first step, followed by an assessment of the required voltage and current ranges. Programmable features offer significant long-term benefits in terms of reproducibility and workflow efficiency. By prioritizing these factors, laboratory professionals can acquire a reliable and versatile tool that serves as a cornerstone for successful and reproducible experiments for years to come.

Frequently Asked Questions (FAQ)

 What is the most important feature to consider when buying an electrophoresis power supply?

The most important factor is the intended application. For DNA electrophoresis, a power supply with a constant voltage mode is crucial, while for protein electrophoresis (SDS-PAGE), a constant current mode is essential for consistent results.

When should a constant current power supply be used over a constant voltage one?

A constant current power supply is typically used for protein electrophoresis (SDS-PAGE) to ensure uniform heat generation across the gel. This prevents band distortion and "smiling," which can compromise the accuracy of protein band separation and size estimation.

Are programmable features necessary for a power supply?

While not always essential for basic runs, programmable features significantly improve reproducibility by allowing users to save and recall optimized methods. They are highly recommended for labs that perform routine, repetitive experiments to save time and reduce human error.

What safety features are standard for electrophoresis power supplies?

Standard safety features include safety interlocks that cut power when the gel tank lid is opened, and automatic protection against over-voltage, over-current, and short-circuit conditions. These features are critical for protecting both the user and the equipment.
