What are Gradient Thermal Cyclers?

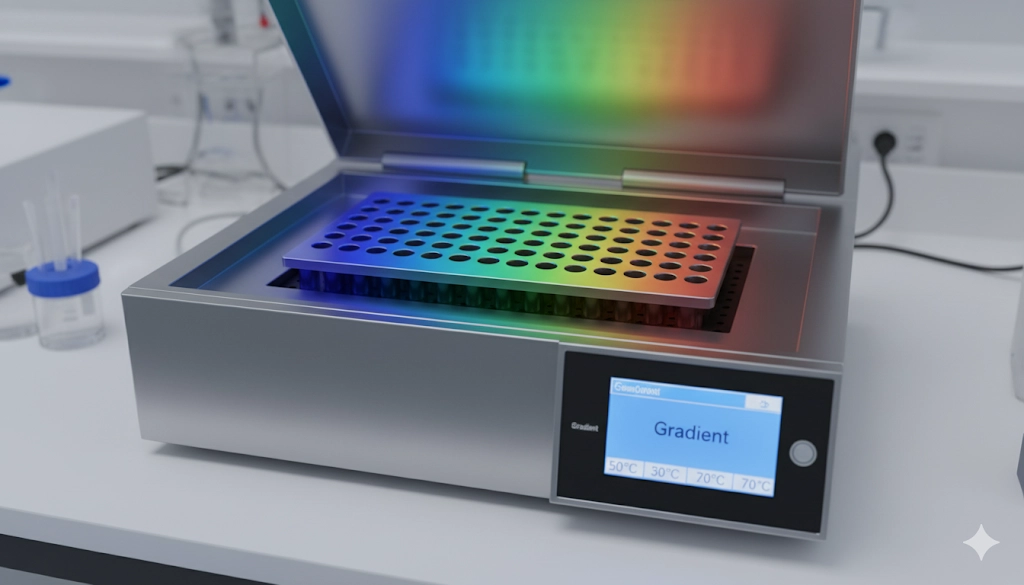

Gradient thermal cyclers are specialized versions of the standard PCR instrument, engineered to apply a linear thermal gradient across the sample block. Unlike conventional cyclers that maintain a single, uniform temperature across all wells during the annealing phase, a gradient model systematically varies the temperature from one end of the block to the other. For instance, if the block has 96 wells, the wells in column 1 might be set to 50°C, and the wells in column 12 might be set to 70°C, resulting in a stable, incremental temperature step-up across the 12 columns. This design enables a single experimental run to test up to twelve different annealing temperatures, providing a highly efficient method for optimizing reaction parameters. This capability is paramount for novel assay development, particularly when working with primers of unknown characteristics or with complex genomic templates that demand highly specific reaction conditions.

The Core Principle of Temperature Gradients for PCR Optimization

The utility of a gradient thermal cycler stems from its ability to efficiently map the relationship between annealing temperature and PCR performance. The annealing temperature is arguably the most critical variable to optimize, as it dictates the stringency of the primer-template hybridization.

How Thermal Gradients Maximize Experimental Efficiency

By testing a temperature range in a single experiment, laboratory staff can quickly identify the point at which maximum product yield intersects with maximum specificity, thus minimizing the risks of non-specific amplification or primer-dimer formation.

Key Features of the Gradient Block:

The operational principle relies on sophisticated Peltier elements and thermal sensing technology that establish and maintain the set temperature differential. Users define the highest and lowest temperatures (the gradient span), and the cycler calculates the precise temperature for each row or column. This stable, reliable, and reproducible thermal array ensures that the observed changes in PCR performance are attributable solely to the temperature variation, making it an invaluable tool for validating new primer pairs or adapting assays to different thermal cyclers.

Applications in Primer Annealing Temperature Determination

The primary and most frequent use case for the gradient thermal cycler is the systematic determination of the optimal annealing temperature (T_a) for a given primer pair. Primer pairs are typically designed to have a specific melting temperature (T_m), but the optimal Ta​ for the actual PCR often deviates from the calculated Tm​ due to buffer composition, polymerase type, and template complexity.

Systematic Optimization of Primer Design

For new assays, especially those involving multiplex PCR or difficult templates (high GC content, long amplicons), the theoretical T_m may only serve as a starting point. A gradient run allows the technician to efficiently test a range typically spanning ±5°C around the calculated T_m.

Practical Steps for Ta​ Optimization:

1. Define Gradient Range: Based on the calculated Tm​ of the lowest-melting primer, select a gradient range. A common starting range is 5°C below the lowest T_m to 15°C above it. For example, if Tm,low​=60°C, the gradient might run from 55°C to 70°C.

2. Run the PCR: Execute the entire PCR program, specifying the gradient only during the annealing step. All other steps (denaturation, extension) remain uniform across the block.

3. Analyze Results: Analyze the products via gel electrophoresis or capillary electrophoresis. The optimal T_a is the temperature column that exhibits the brightest, single, and most distinct band corresponding to the target amplicon size, with minimal or no non-specific bands or primer-dimers.

4. Narrow the Range (Optional): If the optimal temperature is found at the extreme ends of the initial gradient, a second, narrower gradient run may be performed to pinpoint the exact Ta with greater precision.

This systematic approach minimizes the risk of false-negative results caused by suboptimal Ta or false-positive results from non-specific binding, thereby validating the crucial experimental parameters before routine use.

Enhancing Assay Specificity and Reaction Conditions

Beyond simple Ta optimization, the precise control offered by gradient thermal cyclers is critical for maximizing assay specificity, especially in diagnostic and quantitative PCR (qPCR) applications where reproducibility and signal-to-noise ratio are paramount. High specificity is achieved when the annealing temperature is high enough to prevent non-specific binding but low enough to ensure efficient binding to the target sequence.

Achieving Specificity in Complex Assays

In many molecular analyses, the starting material may contain highly homologous sequences, contaminants, or fragmented DNA, all of which can lead to off-target amplification. By scanning a wide range of T_a in a single run, the gradient system facilitates the rapid identification of the "sweet spot" that maximizes the difference in binding kinetics between the specific target and non-specific sites.

Common Scenarios Requiring Gradient Specificity Optimization:

• Multiplex PCR: Optimizing conditions where two or more primer pairs with potentially differing Tm​ values must anneal simultaneously.

• Genotyping and Mutation Detection: Ensuring high stringency to discriminate between a single nucleotide polymorphism (SNP) and the wild-type sequence.

• Template Complexity: Working with cDNA libraries or highly fragmented forensic samples where the background template material is non-uniform.

The impact of thermal gradient use extends directly to the final reaction conditions. A robust assay, developed using the gradient feature, will tolerate minor fluctuations in reagent concentration or instrument performance over time, providing greater confidence in the long-term reliability of the diagnostic or research protocol. This is particularly important for assays destined for regulatory environments or clinical validation.

Troubleshooting and Advanced Experimental Design

The gradient thermal cycler is not merely an optimization tool; it is a powerful troubleshooting asset that can help diagnose issues with primer design, reagent quality, or template integrity. When a standard PCR fails to yield the expected product, a gradient run provides immediate insight into the nature of the failure.

Utilizing the Gradient for Troubleshooting Low Yield or Smearing

If a PCR produces no visible product (low yield) or a smear (low specificity), a gradient analysis can quickly distinguish between problems related to Ta​ and other issues.

• Scenario 1: Low Yield Across All Temperatures (No Product)

  • Indication: The problem is likely independent of annealing temperature. This suggests issues with primer quality, failed template extraction, or inhibition by contaminants (e.g., EDTA, salts).

  • Action: Check template concentration, perform a standard control reaction, and re-order primers.

• Scenario 2: Smear/Multiple Bands at Low Temperatures, No Product at High Temperatures

  • Indication: Classic sign of sub-optimal reaction conditions due to poor Ta​ selection. Low Ta​ allows extensive non-specific binding (smearing), while high Ta​ prevents specific binding (no product). The optimal Ta​ lies in the narrow window between these extremes, identifiable in the middle range of the gradient.

  • Action: Re-run the reaction using only the temperature identified as optimal by the gradient screen.

Advanced Gradient Applications Beyond T_a

While T_a optimization is standard, the gradient feature can be leveraged in less common but equally valuable ways:

1. Enzyme Specificity: Testing the performance of different polymerases or master mixes across a thermal range, often by varying the extension temperature slightly to observe processivity.

2. Denaturation Optimization: For templates with extremely high GC content, a slight gradient in the denaturation temperature can be used to ensure complete strand separation without damaging the polymerase enzyme excessively.

3. Cross-Contamination Verification: Running highly sensitive templates in a gradient alongside negative controls can help determine the temperature threshold above which carryover contamination (if present) is denatured and rendered inactive.

Effective laboratory utilization of the gradient cycler depends on understanding these applications, transforming the instrument from a simple PCR machine into a sophisticated PCR optimization workstation.

Establishing Reliable Polymerase Chain Reaction Protocols

Gradient thermal cyclers are indispensable tools for any laboratory focused on high-throughput or method development applications involving polymerase chain reaction. The ability to test a dozen reaction conditions simultaneously accelerates the validation process, ensuring the efficient use of time and resources. For new assays or primer design modifications, systematic PCR optimization using a thermal gradient is the most reliable method for identifying the precise annealing temperature that guarantees maximum assay specificity and yield. The resulting, highly robust protocols contribute directly to the integrity and reproducibility of scientific results, which is essential for both discovery research and clinical diagnostics. Mastering the gradient function is therefore a key skill for modern molecular biologists seeking to establish reliable experimental parameters.

Frequently Asked Questions (FAQ) about Gradient Thermal Cyclers

What is the difference between a gradient thermal cycler and a standard thermal cycler?

A standard thermal cycler maintains a uniform temperature across all wells during each step of the PCR cycle. A gradient thermal cycler can apply a linear temperature differential—a thermal gradient—across the sample block during the annealing step, allowing researchers to screen multiple annealing temperature points simultaneously in a single run for rapid PCR optimization.

How wide should the temperature gradient be for initial PCR optimization?

A typical initial thermal gradient range is 10°C to 20°C. If the calculated Tm​ for the primers is 60°C, a gradient from 50°C to 70°C is often used. This range allows for the observation of performance changes from highly non-specific annealing (low temperature) to highly stringent annealing (high temperature), helping to pinpoint the optimal reaction conditions.

Can a gradient thermal cycler optimize factors other than annealing temperature?

While designed primarily for annealing temperature optimization, the instrument can be used for secondary optimization of other experimental parameters. For example, by fixing the annealing step and running a gradient during the extension step, researchers can potentially optimize the activity of a novel thermostable polymerase across a thermal range, improving assay specificity and overall yield.

What is the main benefit of using a gradient thermal cycler for primer design validation?

The main benefit is the speed and efficiency of PCR optimization. Rather than performing 12 separate experiments to find the ideal annealing temperature, a single gradient run provides the data necessary to determine the optimal reaction conditions and validates the efficacy of the new primer design, saving significant time and reducing the use of costly reagents.
